Please obey the following stipulations on the entwining method of sealant tape when connecting fitting and tube. Please start tc

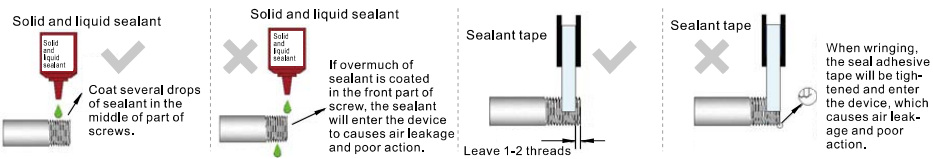

entwine sealant tape from 1st-2nd screw thread at the front part of tube thread and on both of positive direction and inverse directionofthe thread. If the sealant tape entwines out ofthe front part ofthe tubing thread, it will be torn into fragments which will cause faultsand wrong action if they get in the system,

When connecting the tubing, please fasten with proper torque to prevent air leakage and thread damage.

able one: Reference value ofFasten torque .          Unit: N.m

 Pay attention to the following matters when using nylon tube or polyurethane tube materials:

 Please use flame retardant tube or metal tubing in the environment with high temperature spark;The proof pressure is different according to the bore size oftube and the working temperature

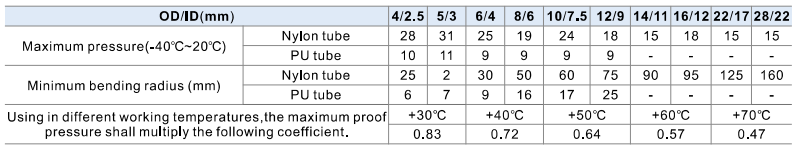

Table two : Reference data of maximum proof pressure.   Unit : kgf/cm”)

The pIpeline shall be cleaned with compressed air prior to connecting the tubing and fittings to the pneumatie components.
